Agents

What it is

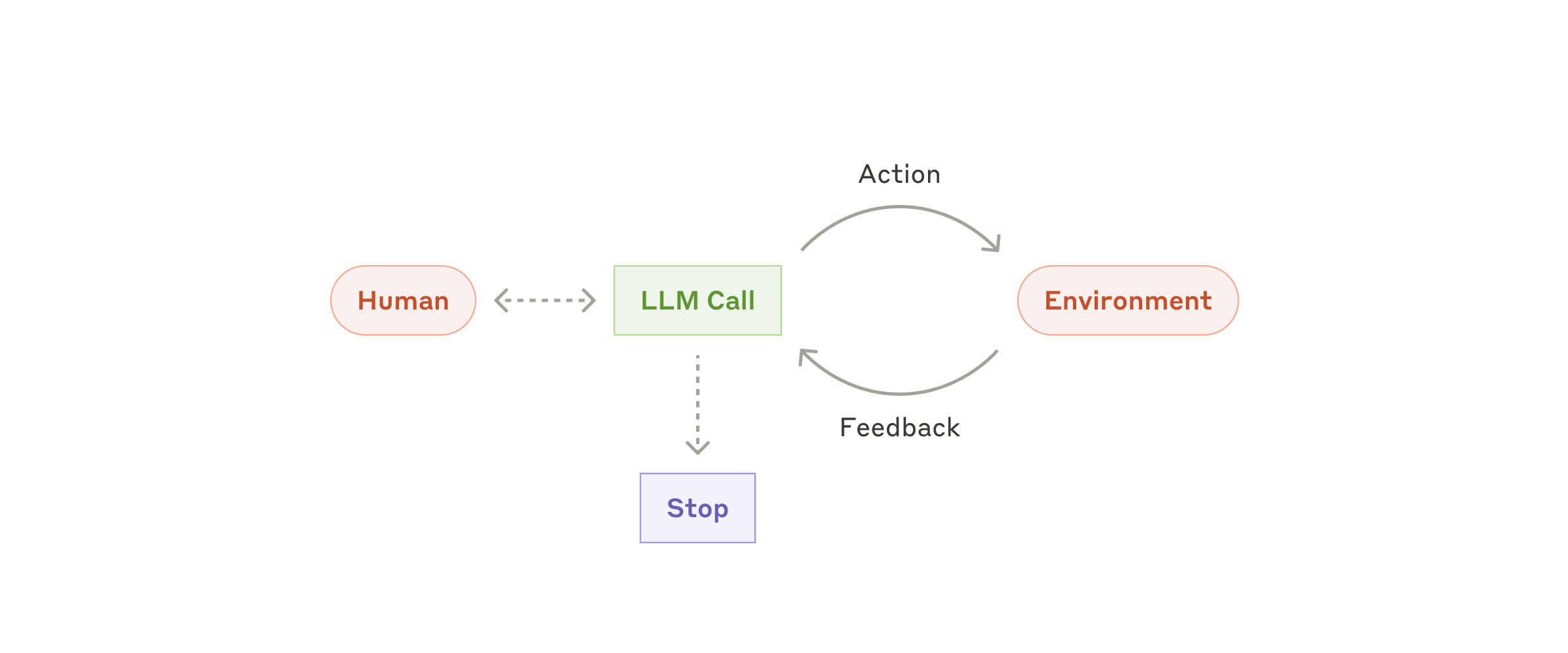

An Agent is a first-class, reusable AI worker: a goal, a set of tools, and a model. Given the goal, it runs the ReAct loop (reason → act → observe) — picking tools and acting until the goal is met — and returns an answer plus a reasoning trace. Agents are managed independently, tested in a playground, and referenced from workflow nodes.

Foundational framing adapted from Anthropic's "Building effective agents".

When to use it

Use an agent for any open-ended single job: answer questions about a corpus, extract from a document of unknown shape, draft a communication, analyse risk. If one specialist can reach the goal, it is an agent; if it needs several roles, it is a squad. See the decision guide and the agentic automation concept.

How it works

Process flow — config to result:

Call flow — execution through the platform:

When agent_id is set, the processor fetches the saved agent and merges it as defaults — inline config wins. Mergeable fields are goal, available_tools, custom_tools, model, max_iterations, temperature, prompt_title, conversational, context_resolvers, business_hours, mcp_servers, and guardrails.

Sub-features

• Two modes — stateless (single-shot, for pipelines) and conversational (multi-turn with session memory).
• Playground — single-shot and chat modes with a per-turn trace timeline.
• Tool registry — governed list of tools (classify_document, extract_from_document, search_documents, summarize, send_email, fetch_url, fetch_drive_file, generate_text, plus built-in escalate and delegate).
• Custom tools & MCP servers — extend the catalog with your own REST endpoints (custom_tools) or external MCP servers (mcp_servers).
• Workflow reference — a node sets agent_id; inline fields override saved defaults (merge behavior).

Configuration parameters

Reconciled against the agent schema (agent/schema.json).

Tips & best practices

• One job per agent. A tight goal beats a sprawling one. If the goal has "and then" in it for two different roles, it is probably a squad.
• Fewest tools that reach the goal. Every extra tool is a distraction and a cost — more tokens per reasoning step and more ways to go wrong. A policy-Q&A agent usually needs only search_documents (+ summarize).
• Write goals as outcomes, not procedures. "Answer HR questions using company policy documents and cite the source" works better than a step-by-step script — the ReAct loop plans the steps.
• Use conversational mode only for back-and-forth. Pipelines and webhook jobs should stay stateless (single-shot). Conversational adds session storage, context resolvers, and history tokens.
• Set available_tools: [] for a pure chat agent (FAQ bot, drafting assistant) — no tools, cheaper, faster.
• Keep max_iterations lean. Most single-tool goals finish in 2–4 iterations; raise it only when the task genuinely needs many tool calls (it is hard-capped at 20).
• Graduate to a squad when you need distinct roles (researcher → writer → reviewer) or a manager that delegates. Use the built-in delegate tool for occasional hand-offs; reach for a squad when delegation is the whole design.
• Anti-patterns: a "do-everything" agent with all tools enabled; embedding rigid step lists in the goal; high temperature for extraction/classification; using conversational mode inside a one-shot pipeline; piling on tools "just in case".

Concrete examples

Saved agent config (JSON) — created via POST /api/agents:

{
  "data": {
    "name": "Policy Assistant",
    "description": "Answers employee questions from the policy knowledge base",
    "goal": "Answer the question using company policy documents and cite the source: {{question}}",
    "available_tools": ["search_documents", "summarize"],
    "model": "vertex",
    "max_iterations": 6,
    "temperature": 0.2,
    "conversational": true
  }
}

Single-shot request (Pattern B — JWT) against the saved agent, with inline overrides:

curl -X POST http://localhost:1338/api/workflow-executions/test-llm-node \
  -H "Authorization: Bearer $JWT" -H "Content-Type: application/json" \
  -d '{
    "task_type": "agent_task",
    "config": { "agent_id": 5, "temperature": 0.1 },
    "inputs": { "question": "What is our remote-work policy?" }
  }'

Result (poll GET /api/workflow-executions/:id/status until completed, then read outputs):

{
  "answer": "Employees may work remotely up to 3 days/week (source: Remote Work Policy v2).",
  "reasoning_trace": [
    { "type": "act", "tool": "search_documents", "args": { "query": "remote work policy" } },
    { "type": "observe", "status": "success", "result": "Found 3 policy documents" },
    { "type": "answer", "content": "Employees may work remotely up to 3 days/week..." }
  ],
  "tools_used": ["search_documents"],
  "iteration_count": 2,
  "metadata": { "session_id": "agent_a1b2c3d4-...", "max_iterations": 6 }
}

Multi-turn (session memory). Create a session with POST /api/agent-conversations to get a session_id (format agent_<UUID>), then pass that same session_id in config on every turn. The processor loads prior history (sliding window of the last 40 turns) so follow-ups like "Does that apply to contractors?" are answered in context. Reuse one session_id per thread; create a new one for a new topic.

Referencing an agent from a workflow node — an agent_task node points at a saved agent and overrides only what differs:

{
  "type": "agent_task",
  "config": {
    "agent_id": 5,
    "goal": "Summarise this contract's risk clauses: {{contract_text}}",
    "available_tools": ["search_documents", "summarize"],
    "max_iterations": 8
  }
}

The node inherits the saved agent's model/temperature/tools as defaults; the inline goal, available_tools, and max_iterations win. See task node mechanics.

Dependencies

• DMS — agent CRUD, prompt fetch, MCP-server registry, and (for conversational mode) session/message storage.
• Agent processor — runs the ReAct loop (processor.py, execution-time source of truth).
• LLM service and the tool registry (tool_registry.py).
• Tools pull in their own services: RAG query for search_documents (see Knowledge Base), email, Drive, REST; external tools via Integrations / MCP.

Limitations

• No long-term memory. History is sent up to a sliding window (default 40 turns); dropped turns are compacted into a brief summary, but there is no durable cross-session memory.
• Conversational sessions are independent — no shared memory across sessions.
• max_iterations is hard-capped at 20; goals needing more steps belong in a squad or a workflow.
• The visual agent-designer canvas (editing agent internals on a drag-and-drop surface) is coming soon — planned, not current. Configure agents via the form/API today.
• The public agent endpoint (POST /api/agents/:slug/chat, API-key auth) is planned; use the JWT or webhook patterns in the meantime.

Troubleshooting

How to test

Repeatable checklist:

1. Create an agent with goal "Answer questions about company policy and cite the source: {{question}}" and available_tools: ["search_documents"] (POST /api/agents).
2. Single-shot in the playground (or POST /api/workflow-executions/test-llm-node with agent_id + inputs.question); poll status until completed.
3. Confirm the trace — reasoning_trace shows act → observe → answer, tools_used lists search_documents, and the answer cites a source.
4. Toggle conversational: true and create a session (POST /api/agent-conversations) to get a session_id.
5. Verify session memory — send a first message, then a follow-up ("Does that apply to contractors?") with the same session_id; confirm the second answer uses prior context.
6. Reference from a workflow — add an agent_task node with agent_id, run the workflow, and confirm outputs.answer flows to the next node.

APIs used
