Integrations

What it is

Integrations are how workflows and agents act on the outside world: send email, fetch from Google Drive, read/reply in Gmail, call any REST API, and connect to external tools over MCP (Model Context Protocol). Users connect their own accounts via OAuth; tokens are stored securely per user and auto-refreshed at execution time.

Two layers power the catalog:

• A provider registry (integration) — one row per available provider (Google Drive, Gmail, Microsoft 365, Salesforce, Slack, …). Adding an OAuth2 provider is config, not code.
• Per-user token storage (user-integration) — each user's access_token, refresh_token, expiry, and connection status for a given provider.

When to use it

Use integrations for the act half of an automation — the step after the AI has decided something. Email/Drive/Gmail for Google workspaces, REST for any HTTP system, MCP to expose TurfAI tools to external clients.

How it works

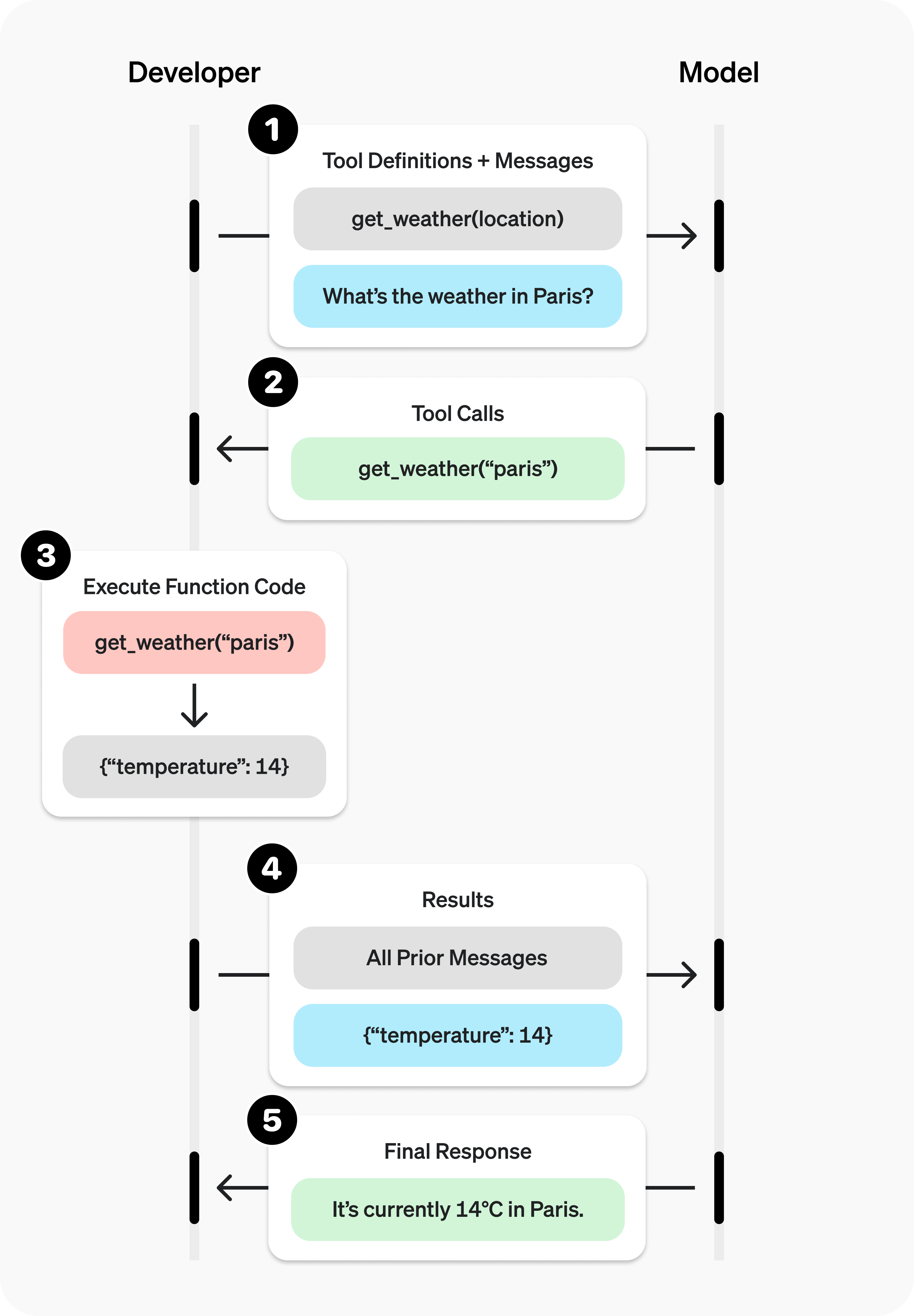

Whether the model uses a built-in tool, your REST endpoint, or an MCP server, the shape is the same: the model emits a structured call, your runtime runs it, and the result returns so the model can continue. Integration nodes are the "your runtime runs it" half.

Tool-calling loop adapted from OpenAI's function-calling guide.

Process flow — connect then use:

At execution time the workflow executor runs enrichWorkflowWithOAuthTokens() right after enrichWorkflowWithCredentials(): for any node referencing a provider it looks up the user's user-integration, auto-refreshes the token if it expires within ~5 minutes, persists the new token, and injects a plain oauth_access_token into the node's input_mapping. The processor never sees OAuth — it just gets a token.

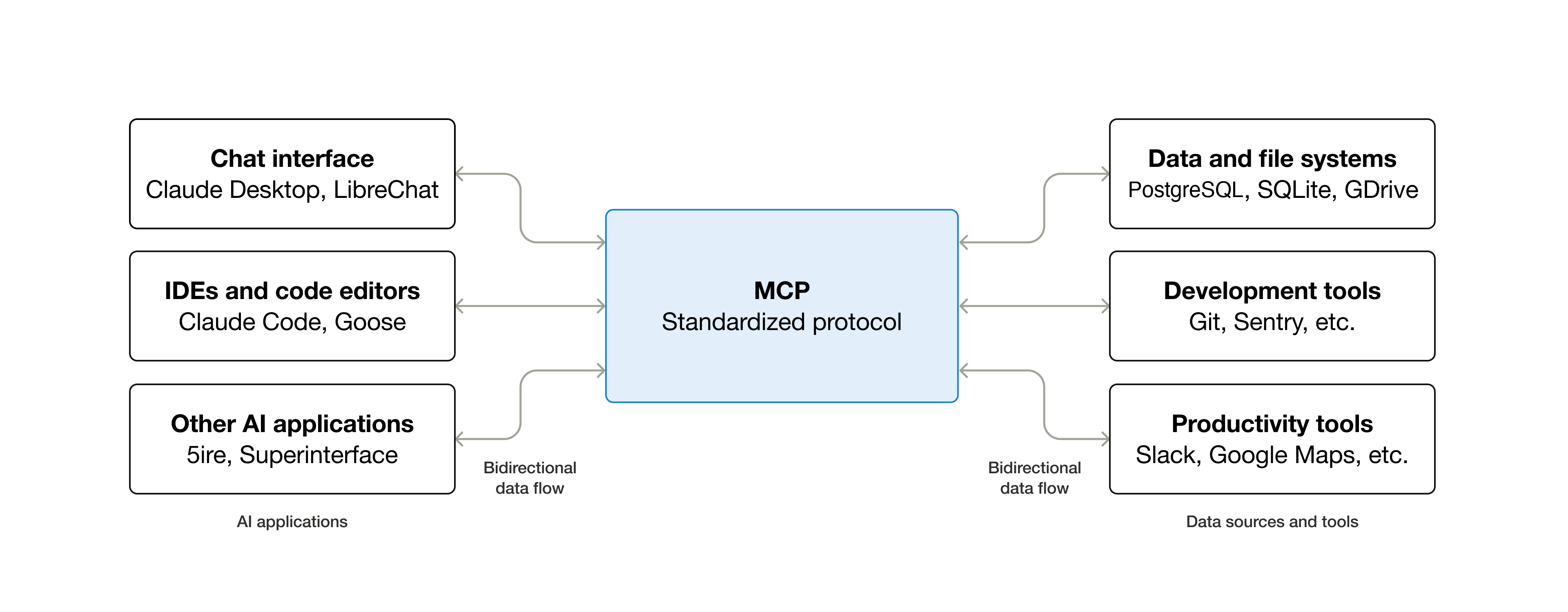

MCP is the open standard for these tool connections — think of it as a USB-C port for AI: connect once to a standard, reuse everywhere, instead of a bespoke integration per tool.

"USB-C for AI" framing adapted from modelcontextprotocol.io.

Call flow — MCP today (read-only wrapper):

Sub-features

• Google Drive — fetch by file_id, or search by folder_id + file_name; imports into DMS (GCS). Dual-mode: user-delegated OAuth or a server service account.
• Email (SMTP) — HTML body, {{variable}} substitution, to/CC/BCC, custom sender. Best-effort (a send failure doesn't fail the whole workflow).
• Gmail — fetch with filters (from, subject, label, unread, date, attachments), reply with thread preservation, download attachments.
• REST API — GET/POST/PUT/PATCH/DELETE, template vars in URL/headers/body, JSONPath output_mapping, configurable timeout, SSRF-guarded.
• Generic OAuth2 adapter — any OAuth2 provider via oauth_config JSON (Microsoft 365, Salesforce, Slack seeded today); PKCE supported.
• MCP — TurfAI MCP server exposes document/workflow/RAG tools to external clients (read-only wrapper today); outbound MCP (agents calling external MCP servers) is planned.
• Integration catalog — browse, connect, and manage user integrations and credentials.

Configuration parameters

Provider registry — integration (oauth_config)

These describe a provider, not a user. Reconciled with dms/src/api/integration/content-types/integration/schema.json.

oauth_config JSON (the heart of the generic adapter):

Per-user token storage — user-integration

Reconciled with dms/src/api/user-integration/content-types/user-integration/schema.json.

Node config (in a workflow)

Tips & best practices

• REST API is the universal connector. You rarely need a dedicated processor — any HTTP API (Slack, Jira, HubSpot, Stripe, your own service) is a REST node with the right headers and an output_mapping. Reach for a custom processor only for streaming files, pagination, or webhook subscriptions.
• Reuse credentials via {{variable}}, never hard-code secrets. Put API keys in the credential store and reference them — e.g. "Authorization": "Bearer {{slack_bot_token}}". The executor resolves them at run time and they never appear in the workflow definition.
• Request least-privilege scopes. Ask only for what the workflow needs (e.g. drive.readonly, gmail.readonly) so consent screens are easy to approve and a leaked token does less damage.
• Let the platform handle token refresh. Don't store or pass access tokens yourself — set oauth_integration: "<provider>" (or connect Google) and the executor refreshes + injects.
• For OAuth setup, store env var names in oauth_config, then set the actual PROVIDER_CLIENT_ID / PROVIDER_CLIENT_SECRET in the environment. Restart DMS and the provider appears in the catalog with a working Connect button.
• Map outputs narrowly. Pull just the fields you need with JSONPath output_mapping so downstream nodes get clean, named values instead of a giant response blob.

Concrete examples

1 — Connect a Google integration (OAuth). From the Integrations catalog click Connect on Google Drive / Gmail. The popup requests the default scopes (drive.readonly, gmail.readonly, gmail.modify, gmail.send, userinfo.email, userinfo.profile) with access_type=offline and prompt=consent so a refresh token is issued. On callback, tokens land in your user-integration and status flips to connected.

2 — REST API node with custom headers + JSONPath output mapping.

{
  "task_type": "rest_api_task",
  "config": {
    "url": "https://api.example.com/v1/orders/{{order_id}}",
    "method": "GET",
    "headers": {
      "Authorization": "Bearer {{example_api_key}}",
      "Content-Type": "application/json"
    },
    "timeout": 30,
    "output_mapping": {
      "order_status": "$.data.status",
      "total": "$.data.amount.total"
    }
  }
}

{{order_id}} and {{example_api_key}} resolve from inputs / the credential store; the executor applies the JSONPath output_mapping so downstream nodes see order_status and total.

3 — Gmail fetch with a label filter.

{
  "task_type": "gmail_fetch",
  "config": {
    "label": "Invoices",
    "is_unread": true,
    "has_attachment": true,
    "max_results": 10,
    "download_attachments": true
  }
}

Returns { emails: [...], attachments: [...], count }; attachments are imported to GCS for downstream processing.

4 — Email send with a templated body.

{
  "task_type": "email_task",
  "config": {
    "to": "{{customer_email}}",
    "cc": "ops@acme.com",
    "subject": "Your order {{order_id}} shipped",
    "html": "<p>Hi {{customer_name}},</p><p>Order <b>{{order_id}}</b> is on its way.</p>",
    "sender": "support@acme.com"
  }
}

{{customer_email}}, {{order_id}}, {{customer_name}} come from the workflow context.

5 — Outbound to a non-Google OAuth provider (e.g. Microsoft 365 once connected): set oauth_integration and the executor injects oauth_access_token for you.

{
  "task_type": "rest_api_task",
  "config": {
    "oauth_integration": "microsoft_365",
    "url": "https://graph.microsoft.com/v1.0/me/messages",
    "method": "GET"
  }
}

MCP read-only wrapper note. The TurfAI MCP server exposes document/workflow/RAG tools to clients like Claude Desktop and Cursor over stdio. Today it is a read-only wrapper: it creates DMS jobs and polls results — it cannot mutate platform config. Outbound MCP (agents calling external MCP servers) is planned, not yet available.

Dependencies

• Google OAuth 2.0 (legacy Google-specific flow) for Drive/Gmail; generic OAuth2 adapter for everything else; per-user token storage in user-integration.
• DMS as the single API gateway — frontend, processors, and the MCP server talk only to DMS, never directly to provider SDKs or Python services. DMS owns OAuth token handling.
• Processors execute integration tasks; job router / Redis dispatch them.

Limitations

• Drive/Gmail require the user to have connected Google OAuth with the right scopes (and to have granted offline access so a refresh token exists).
• The MCP server is read-only today; outbound MCP to external servers is planned.
• REST calls honour SSRF protections — blocked schemes (file, ftp, gopher, data, javascript), blocked metadata hosts (169.254.169.254, metadata.google.internal), and private/reserved IP ranges. Self-calls back to DMS are explicitly allowed.
• Tier 1–3 providers beyond the seeded three are coming soon (see Roadmap).

Troubleshooting

How to test

1. Connect Google → run a Drive fetch. Connect Google OAuth from the catalog; confirm status: connected. Add a Drive Fetch node with a real file_id, run the workflow, and confirm the output has file_url / file_name / mime_type.
2. Store a REST credential → call your API → map output. Save an API key in the credential store, add a REST node using "Authorization": "Bearer {{your_api_key}}", set an output_mapping (e.g. {"status": "$.data.status"}), run it, and confirm the mapped field appears in the next node's inputs.
3. Email send. Run an Email Send node with {{variable}} substitution and confirm delivery in the run timeline.
4. Gmail filter. Run a Gmail Fetch with a known label and confirm count > 0.
5. (MCP) Point an MCP client at the TurfAI MCP server and call a document/workflow tool.

Cross-links

• Event Bus / Triggers — what starts a workflow (the inbound half to integrations' outbound half), incl. Gmail push via webhook_id.
• Visual Workflow Builder — where you drop integration nodes, wire input_mapping, and set output_mapping.

Roadmap

The generic OAuth2 adapter (Tier B) is complete, with Microsoft 365, Salesforce, and Slack seeded. Remaining providers ship via the generic OAuth2 adapter or zero-code REST templates — coming soon:

Outbound MCP — agents calling external MCP servers as tools — is planned (the MCP server is inbound/read-only today).

APIs used

See architecture/integrations.md and architecture/mcp/architecture.md in the source repo.
